· Expanded feature types for multi sensor · Supports online / offline measurement environment · Output measurement result in graphical window · Moving path simulation · Exports CAD file · Supports various types of relative feature · Support the ASME Y14.5 and ISO1101 GD&T standard specification · Provides various editing method · Macro measurement function · Adopted easy to use tree structure with simple icons · Supports multi-languages · Supports free formed curve / surface measurement · Various output formats · Auto edge detection · Auto save function to backup results · Camera monitoring function · Convenient short-key manipulation for better productivity · Common data access among each measurement mode · Provides customizing software on request · Provides various optional functionalities · Generates user defined report · Manual measuring mode · Setting of alarm sound · Automatic control of various illumination lights · Customizable options for edge detection · Applies digital zoom · Inspects form deviation with laser to assess product deformation behavior · Statistics analysis

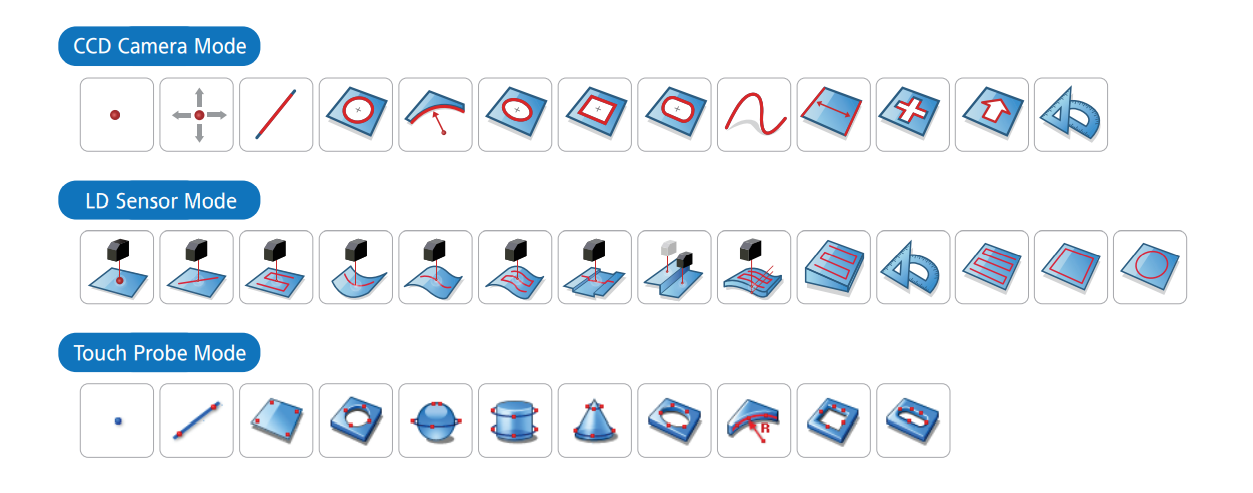

Various feature measurement menu for each sensors Supports easy to use dialog for manual/automatic measurement and auto focus etc. Display move / measure path Supports automatic measurement dialog for each feature Supports warpage measurement procedure

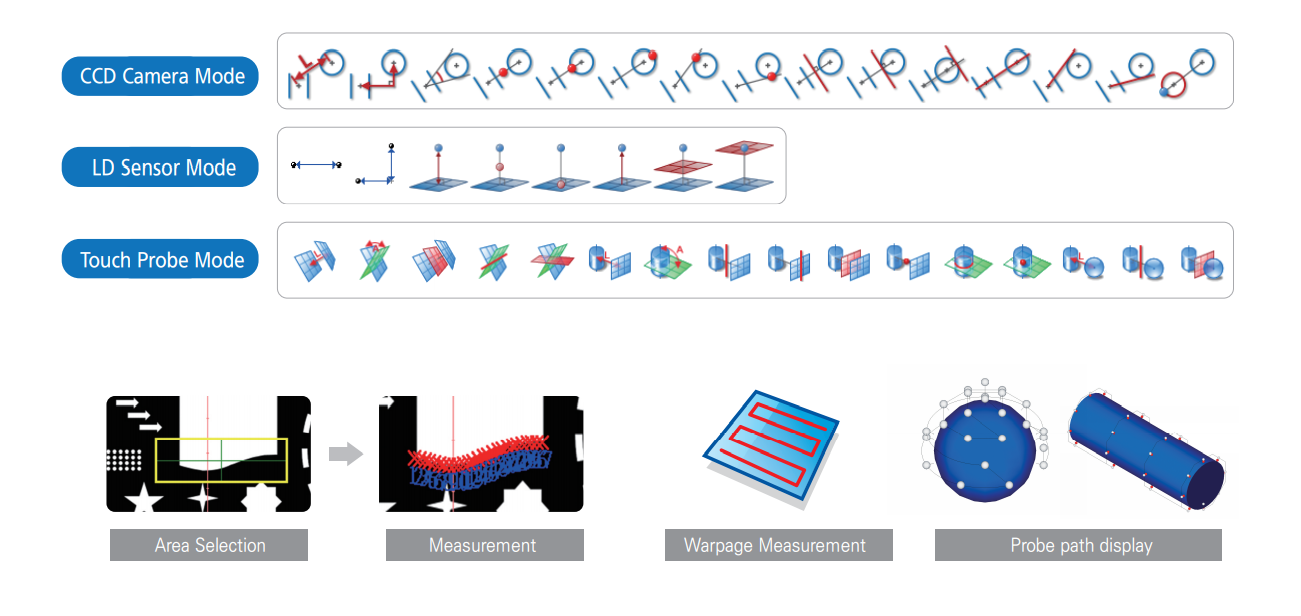

Wide supports for various types of relative features Construct features Constructs new features using measured result Offset, Mirror, Project, Move, Rotate function to construct features Transform features Transforms features using measured result (output as new features) Transforms circle to point, ellipse to cylinder, slot to straight line & circle etc.

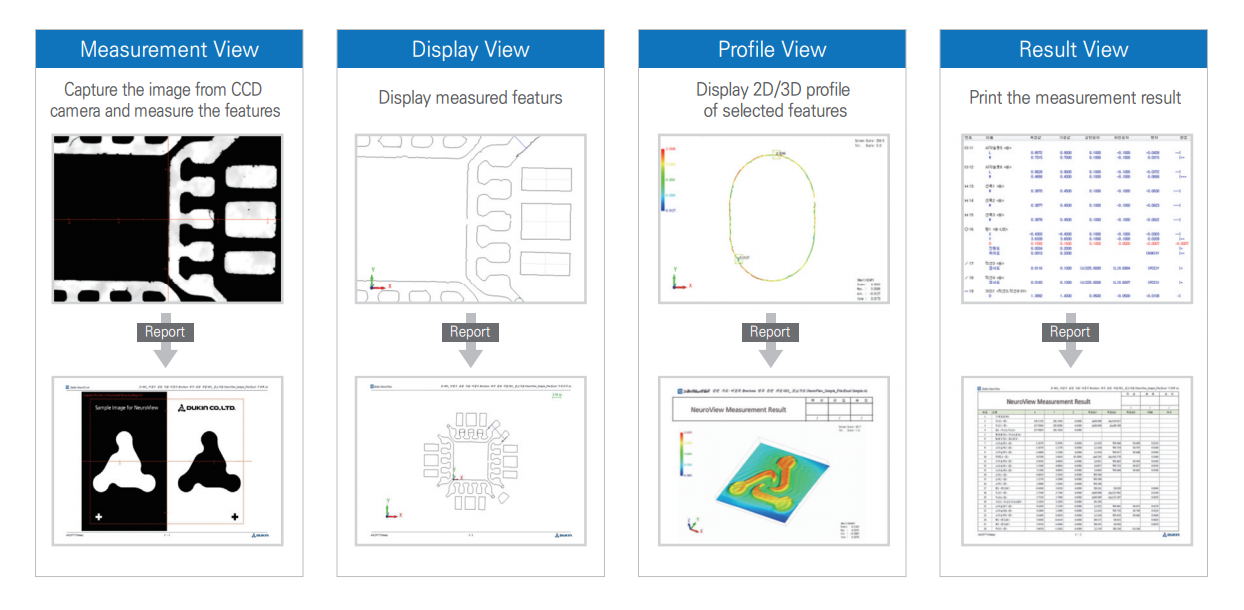

Powerful graphical window and analysis report Produces graphical reports using a variety of formats (2D/3D) to meet user's needs and requirements. Generates reports easily and quickly using data analysis tools for measured feature, relational feature and GD&T. Measurement View: Capture the image from CCD camera and measure the features Display View: Display measured features Profile View: Display 2D/3D profile of selected features Result View: Print the measurement result

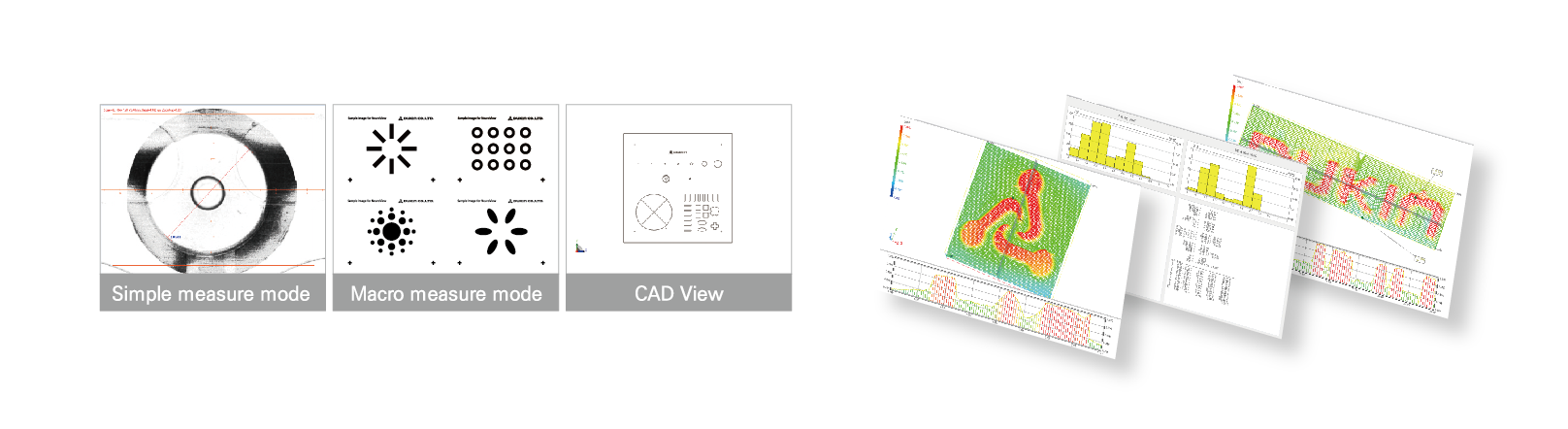

IMPORT/EXPORT Image file format: BMP, GIF, JPEG etc. CAD file format: IGES, DWG, DXF, ODB etc. ODB file : ODB++ Measurement Macro Simple measure mode in camera window Macro measure mode for feature array CAD View : Measurement using cad information GD&T evaluation Applies ASME Y14.5/ISO1101 GD&T standard specification Evaluates GD&T about 3-D feature Adoption of of standard symbol enables user easily understand the result Applies multiple material condition (MMC, LMC)
