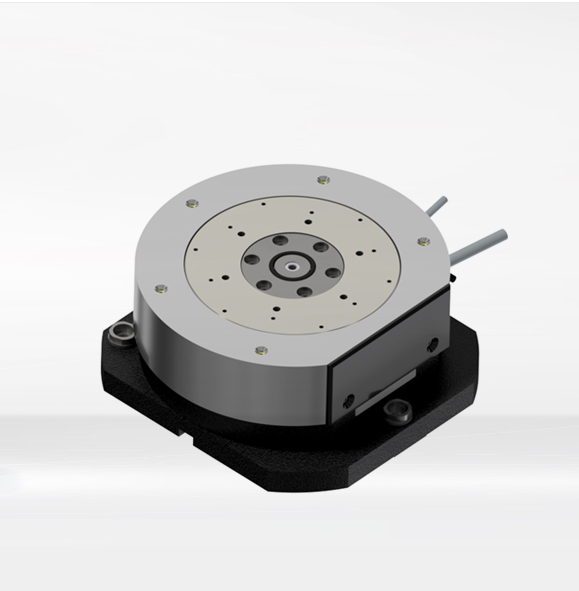

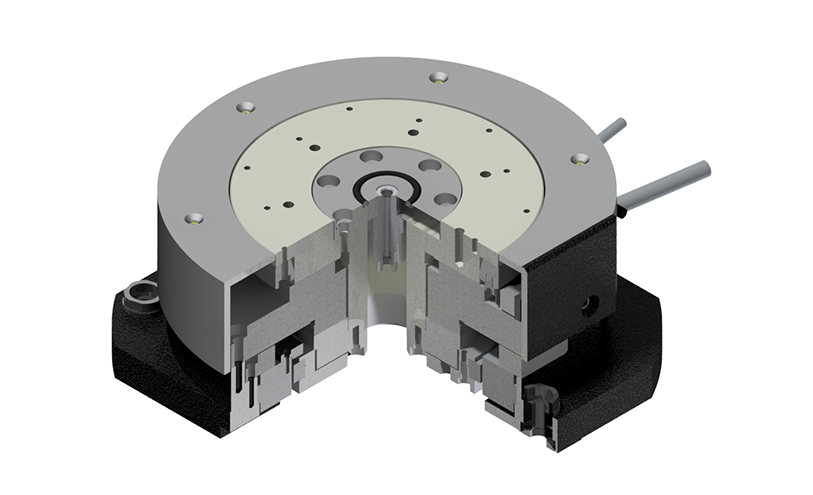

      Compact DD Motor

      High precision rotary motor

      Contact Sales
      Feature

      • Productivity / Hardware

        · Manufacture high precision, compact rotary motor

        · Applicable for hollow bore and vacuum

        · Horizontal alignment, height adjustment function

        · Customize according to customer requirement specification


      Specifications


      Parameter
      		Θ axis1
      Stroke
      		±360°
      Resolution
      		0.4"
      Position Accuracy
      		±3"
      Repeatability
      		2"
      Max Velocity720deg/s
      Max Acceleration3000deg/s2
      Tilt Error or Wobble
      		1"
      Run-out (Axial & Radial)
      		1um

      ■ Customizable Hardware/Software UI
