Excimer Laser Annealing Equipment System
Contact Sales

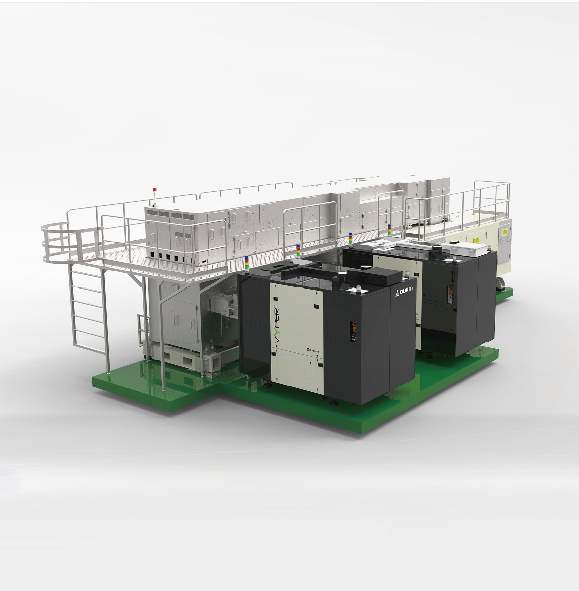

ELA 6G-TV-1000
6th Gen Mass Production Equipment for Flexible AMOLED Panel
Specifications
Laser Model | TwinVYPER |
Laser Wavelength | 308nm |
Laser Stabilized Power (Max.) | 2400W (4000mJ) |
Laser Repetition Rate (Max.) | 600Hz |
Laser Energy Stability | ≤ 0.35% |
Laser Pulse Duration | 24 ± 4ns |
Line Beam Size | 1000 mm X 0.6 mm |
Stage Type | 6G Single Plane Air Bearing X, Y Stage with Z & R axis |
