VX3D

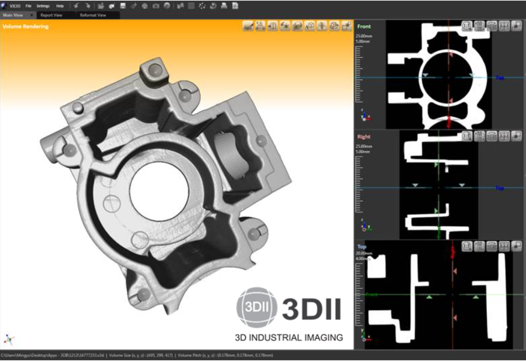

VX3D is a 3DII software platform for 3D visualization and analysis of volume data. VX3D is optimized for volume data analysis of CT scan, and users can inspect industrial parts such as automotive parts and circuit chips.
Contact SalesVX3D
Main features -Various 3D rendering modes -Task details and undo / redo -Path animation -View reorganization -Various view modes-Panorama / Tile / Report view -Measurement tool -Object processing: 3D filter, mesh extraction, etc. -Object sorting -Intuitive visualization tool -STL (Binary, ASCII) creation for CAD data support
Features

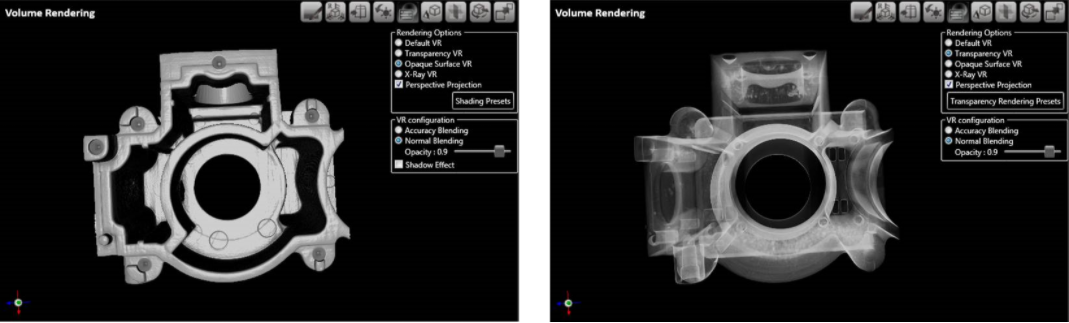

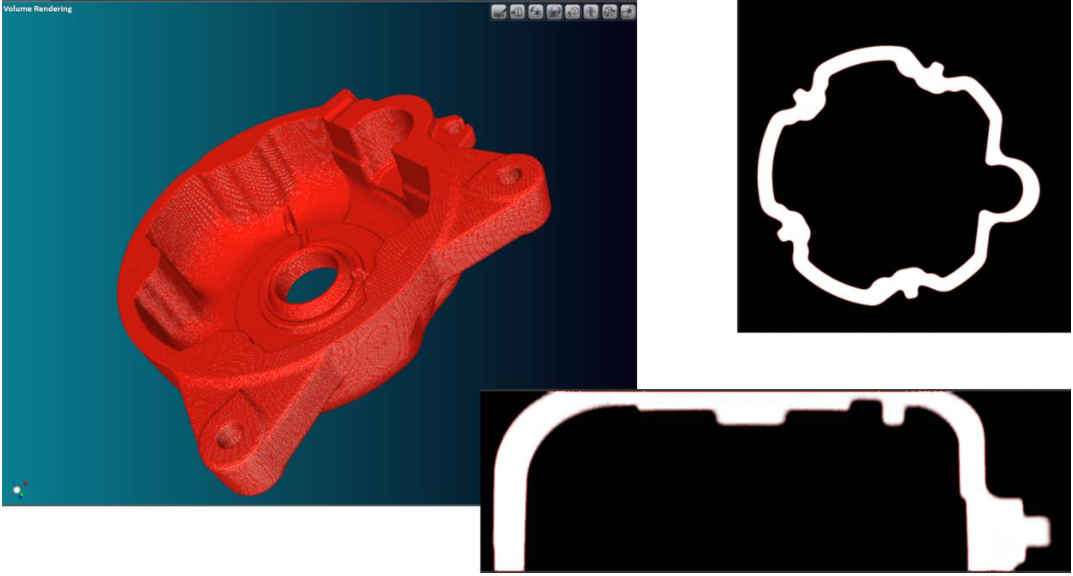

·3D rendering mode -Volume data can be visualized according to user settings -VX3D visualizes input data in real time by applying GPU acceleration technology and provides a rendered image to users, enabling an intuitive understanding of the volume structure.

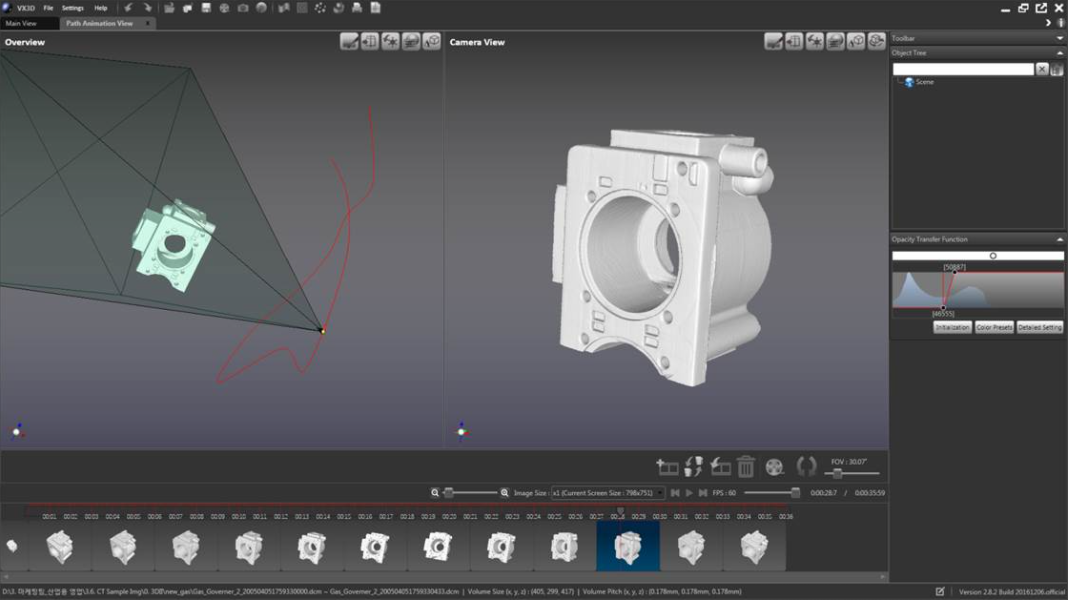

·Path animation -Through various functions of the 3D panel, users can create animations by displaying the path and changes the volume file moves.

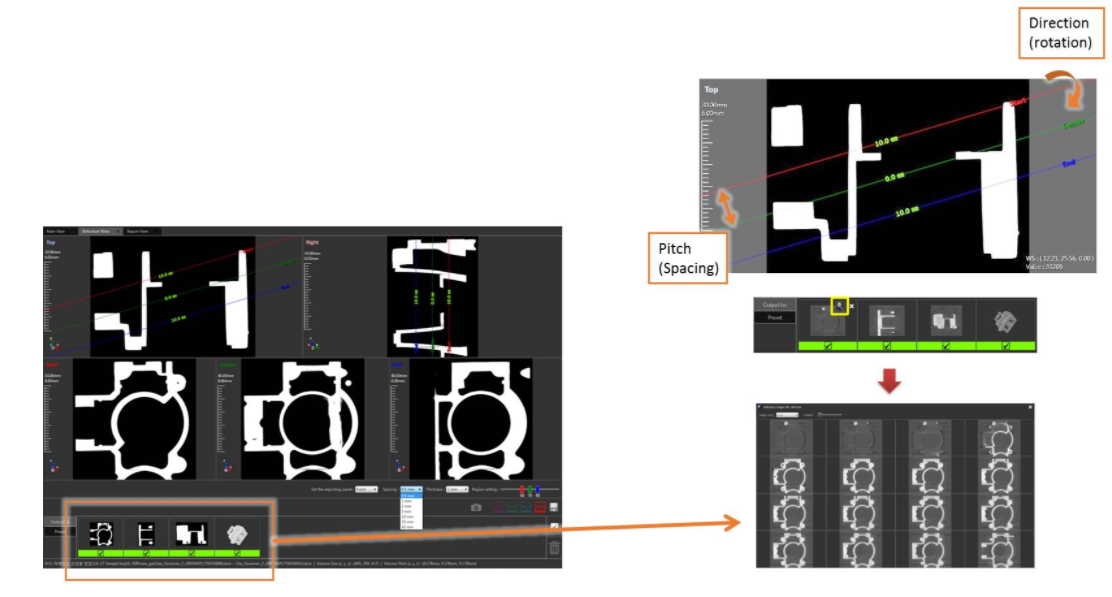

·View reorganization -Reformat View specifies a specific area of the volume. -Users can adjust the pitch, position and direction (rotation) of the cross-section image to apply to the image file. -Image files can be saved as jpeg,dcm,wmv.

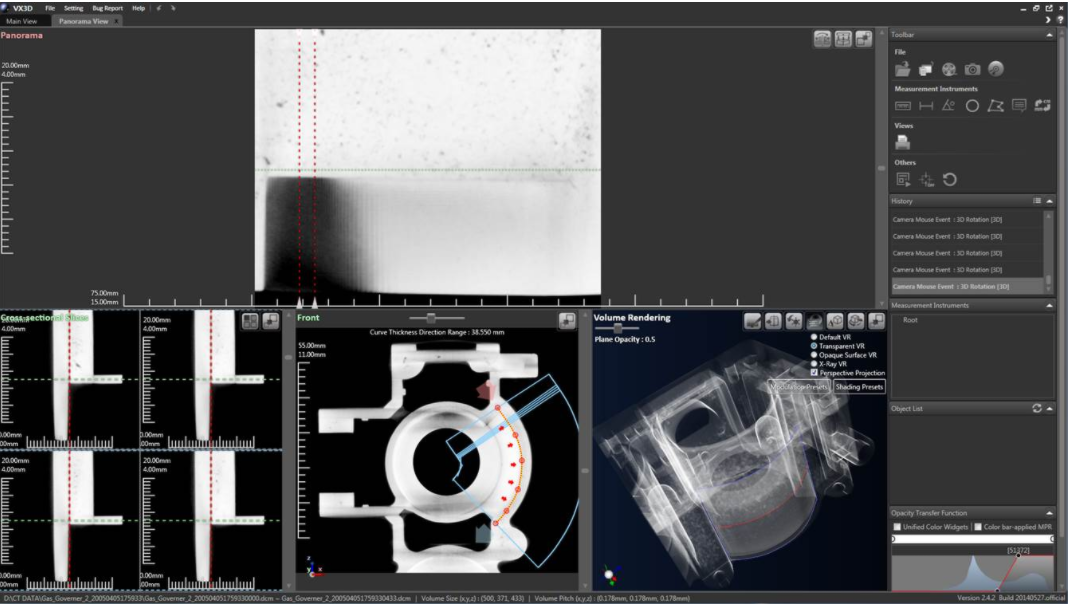

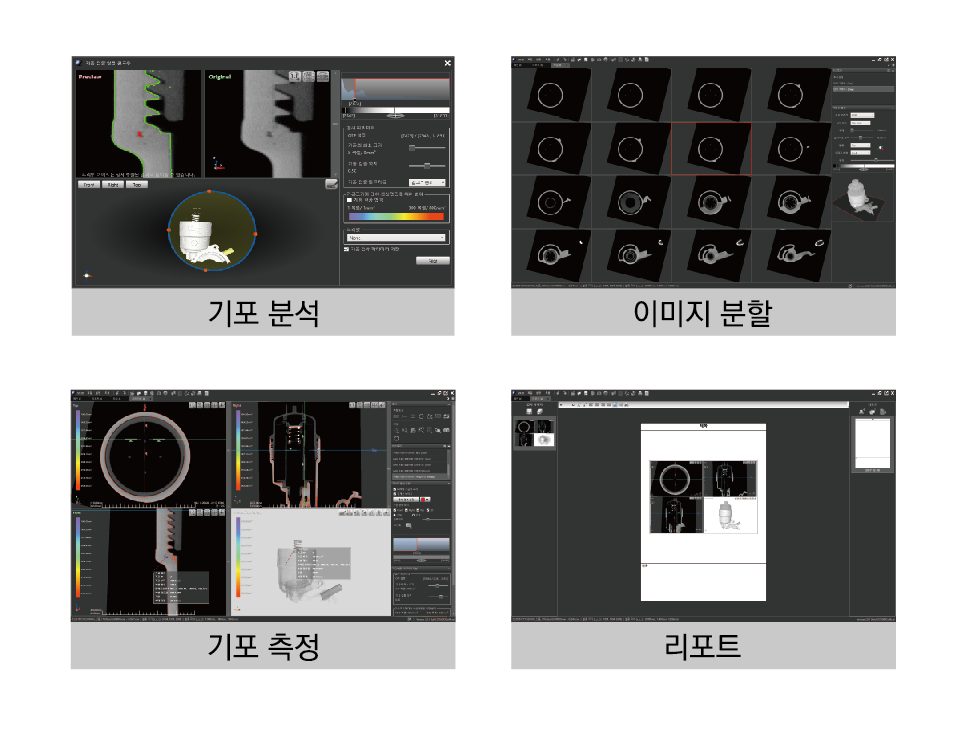

·Supports various CT modes -Panorama view -Tile view -View report

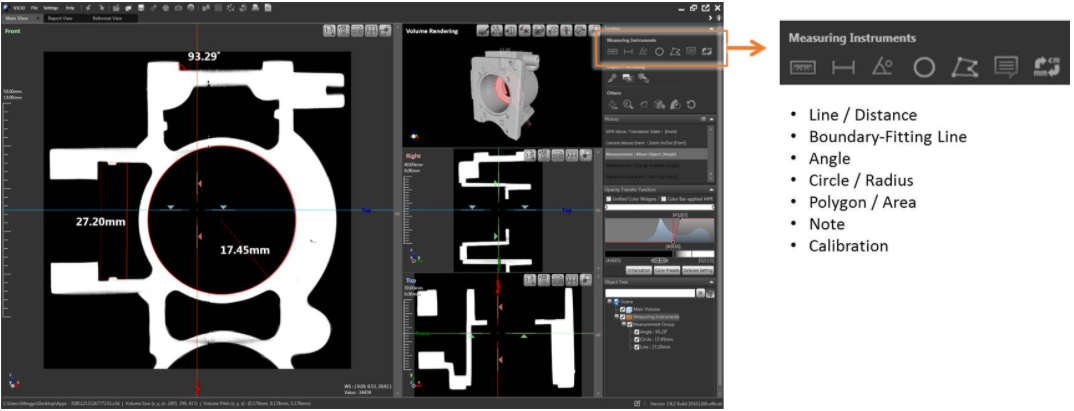

·Measuring tool -Users can measure dimension, angle, radius, area, etc. by using measuring tools.
Object processing

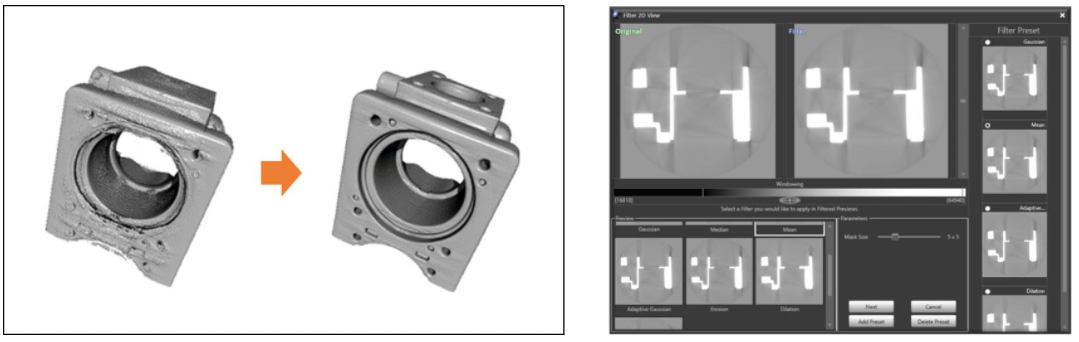

·3D filter -VX3D uses filters to process volume data according to the purpose of analysis.
·Mesh extraction -VX3D extracts mesh data.

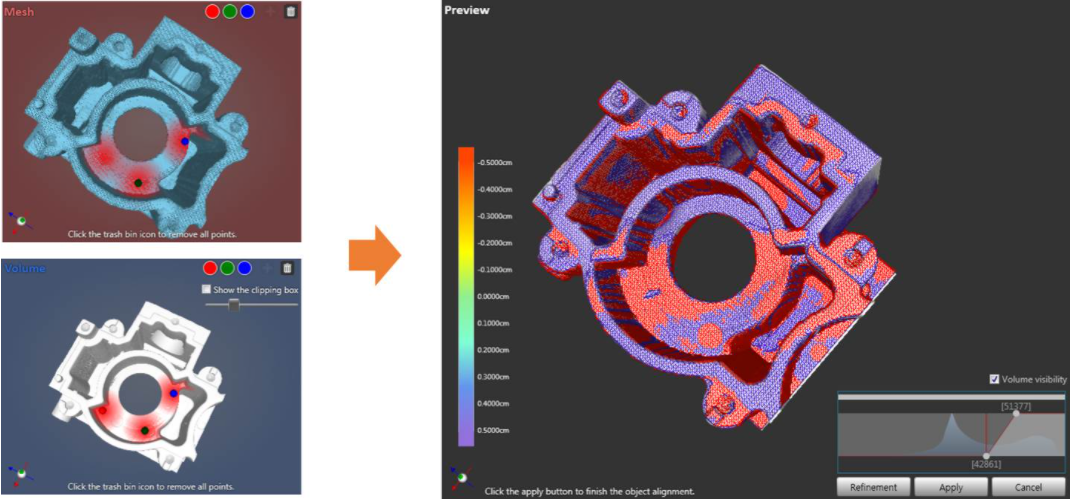

·Object sort -VX3D sorts mesh data and volume data.
