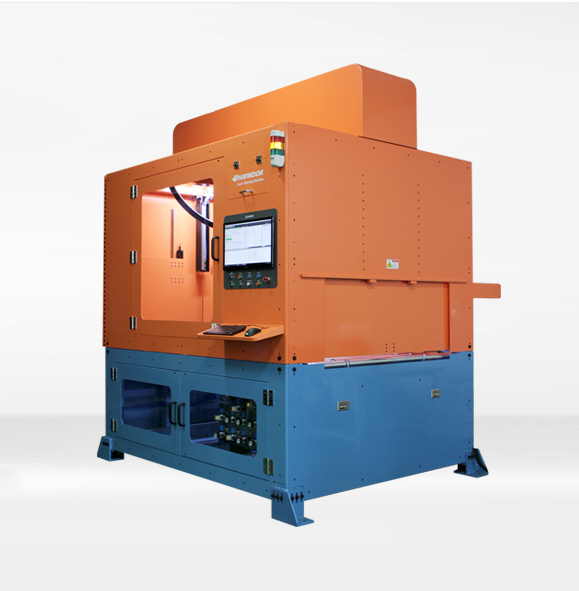

      Laser Inner Liner Cleaner

      Releasing agent cleaning equipment with high-speed laser scanner

      System that reduces cavity noise by facilitating adhesion of acoustic absorbents after cleaning the releasing agent of the tire inner line using a laser

      Parameter setting by model & Production Monitoring

      Contact Sales
      Feature

      • Process Performance

        · Cleaning releasing agent using fiber Laser and high-speed scanner

        · Effective fume removal using a dust collector

        · Tire specification : 17”~22”

        · Customize according to customer requirement specification.

      • Productivity / Hardware

        · Cycle Time : 48 sec (Based on 1 tire)

        · Real-time detection of equipment malfunction [Laser, Scanner, etc]

        · Customer Convenience: Vision Inspection, Tool Matching

        · System for Analyzing and Diagnosing Equipment

        · Customize UI Software

      Specifications


      Parameter
      Categorization
      Specification
      Machine
      Size
      2500mm X 2775mm X 3100mm
      Weight
      3.5 ton
      Conveyer Type
      Roller Type Conveyer
      Tire
      Overall Diameter
      620mm ~ 900mm
      Bead Diameter
      17"~23"
      Cross Section Width
      120mm~355mm

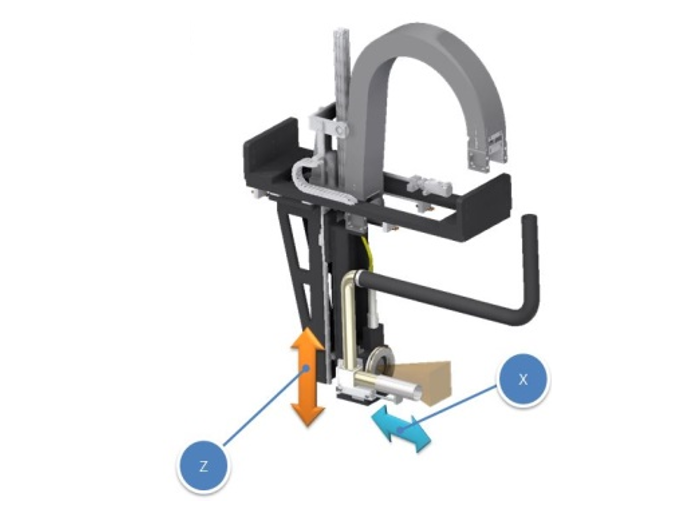

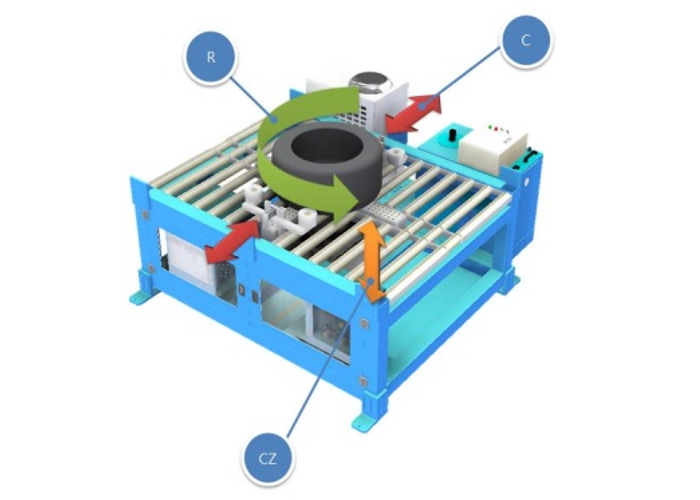

      Moving Mechanism
      X axis

      LM Guide + Ball Screw + Rotary Motor

      Z axis

      LM Guide + Ball Screw + Rotary Motor

      (Air Cylinder : Counter Balance)

      C axis
      Cylinder + LM Guide
      CZ axis

      Ball Bush Guide + Jack Screw + Rotary Motor

      (Air Cylinder : Counter Balance)

      R axis
      DD Motor


      ■ Customizable Hardware/Software UI
