Laser Marking System

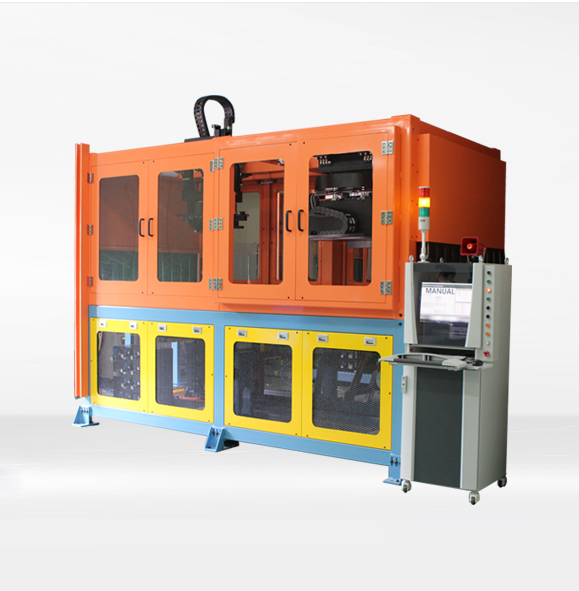

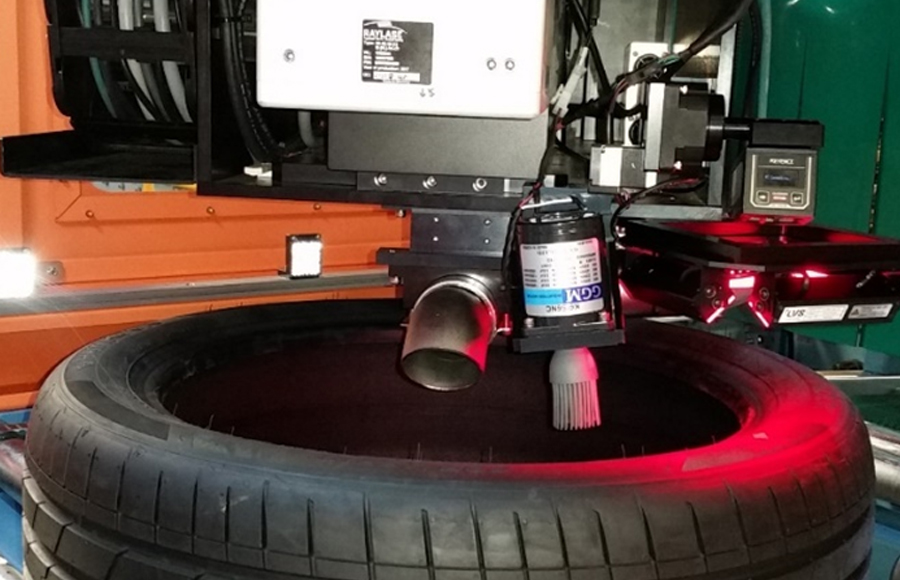

Laser marking system is used to automatically print QR Codes / Logos / Initials at a designated location after obtaining data on the tire surface using a laser scanner sensor.
Feature
-
Process Performance
· High speed marking on the tire surface [QR Code / Logo / Initial]
· Application of Carbon dioxide laser
· Applicable to metal, resin, paper, glass, PCB, wood, plastic and ceramic.
· Customize according to customer requirement specification.
-
Productivity / Hardware
· Production of Multi-variety Model
· Cycle Time : 25 sec (Based on one side of tire)

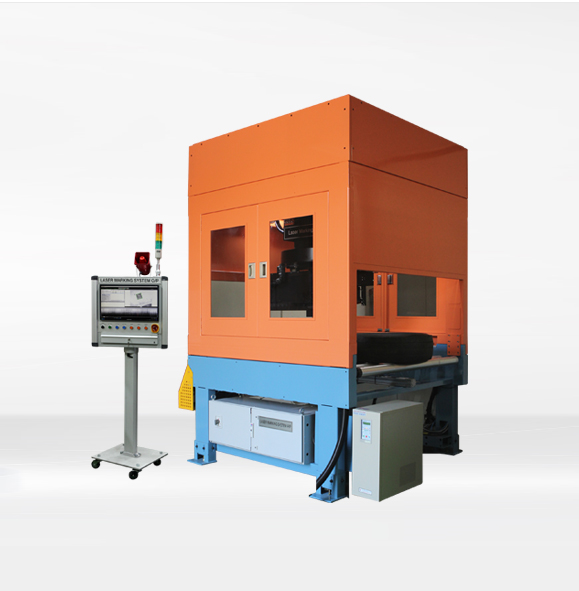

· Customized Hardware Configuration: 1, 2 Station
· Customer Convenience: Vision Inspection, Tool Matching
· System for Analyzing and Diagnosing Equipment
· Customize UI Software
Specifications
Parameter | Categorization | Specification (Moving Range / Max Speed / Motion) |
Moving Module | C | 400mm ~ 1000mm / 300mm/s / Ball Screw |
X | 1950mm / 300mm/s / Rack & Pinion | |
Z | 270mm / 300mm/s / Ball Screw | |
Scan Module | R | 375 ° / 30rpm / DD Motor |
X | 340mm / 300mm/s / Ball Screw | |
Z | 420mm / 300mm/s / Ball Screw | |
Marking Module | R | 375 ° / 24rpm / DD Motor |
X | 340mm / 300mm/s / Ball Screw | |
Z | 340mm / 300mm/s / Ball Screw |
■ Customizable Hardware/Software UI
