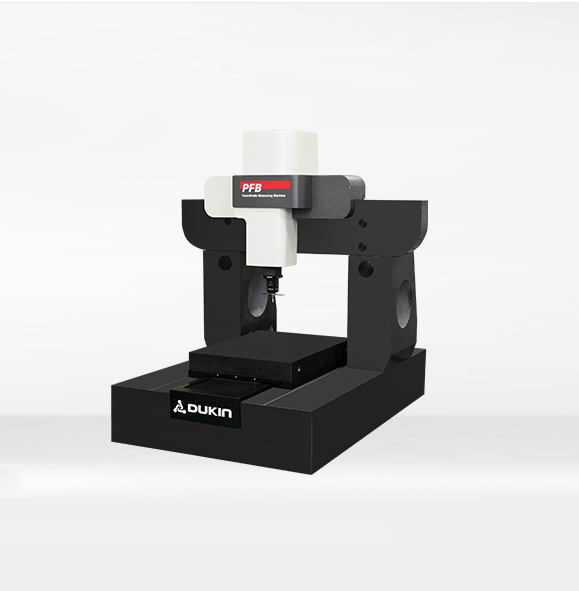

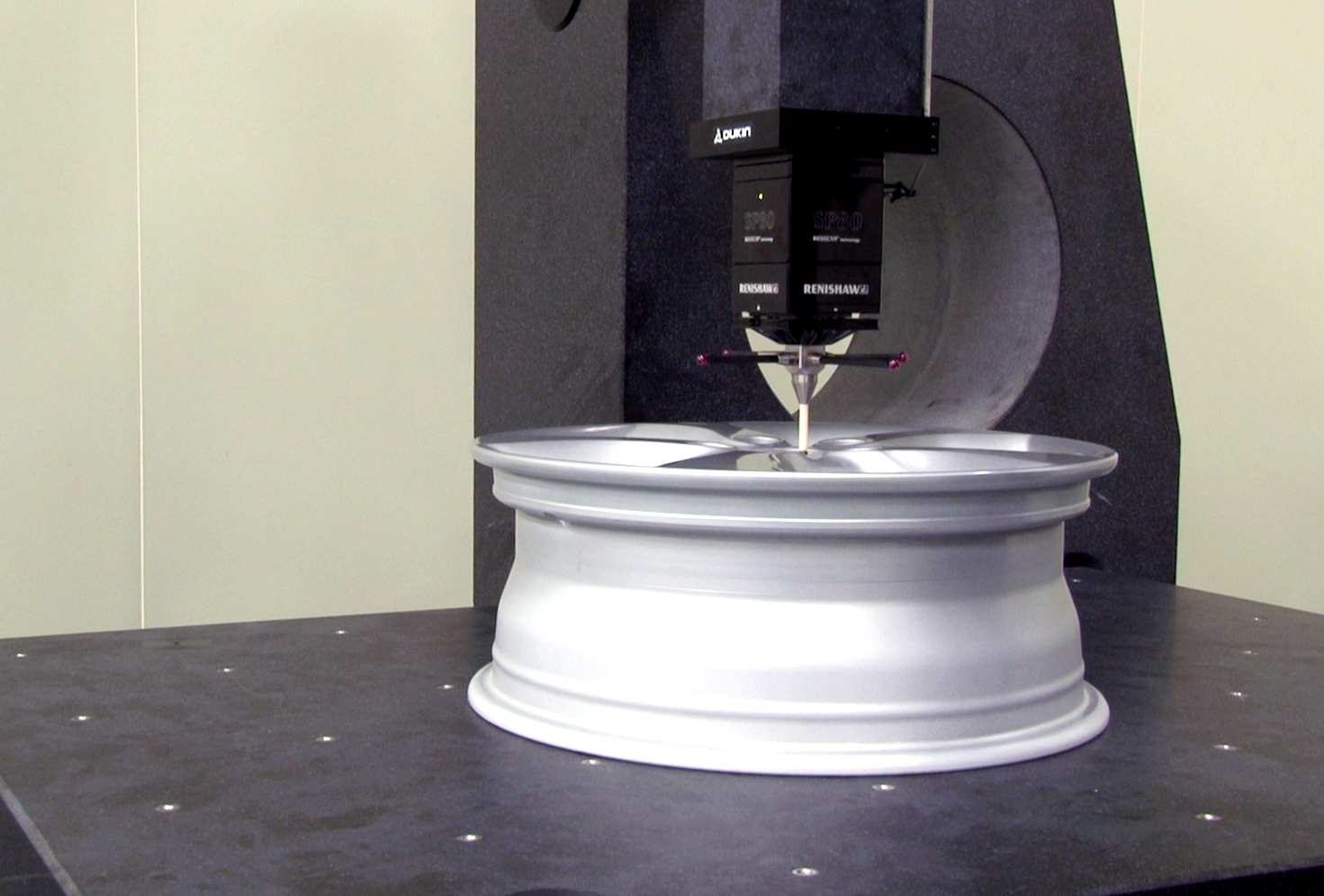

      Movable Table (High Precision) Coordinate Measuring Machine
      PFB

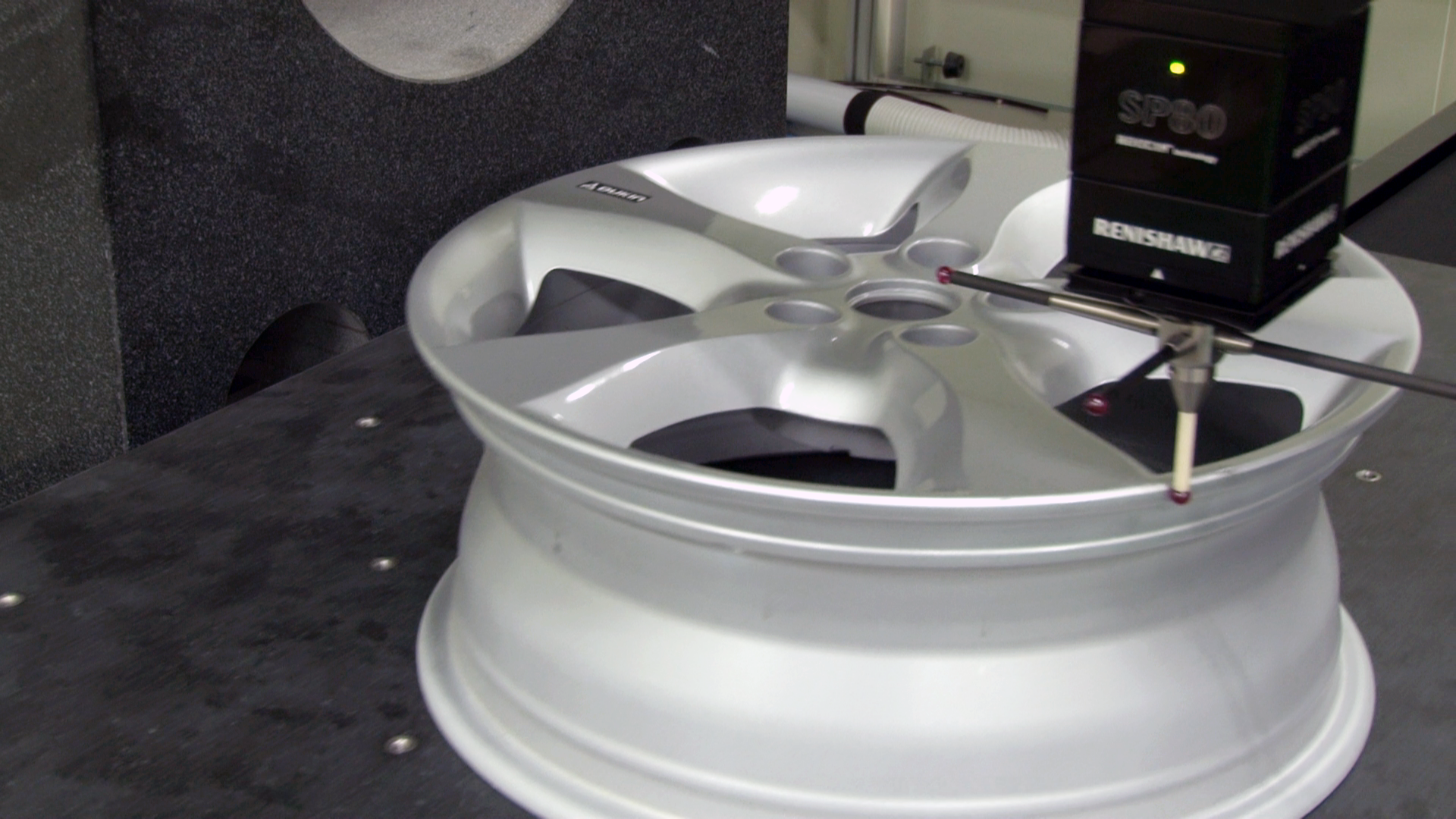

      Best for measuring structures, automotive parts & molds

      Adopted L type bridge sturcture which improves driving safety


      Contact Sales
      Feature

      • · Guarantees the best stability with table moving structure

        · Realizes ultra-precision measuring machine by removing Abbe error

        · Air bearings on all axes for high stability at high travel speeds

        · Minimized thermal induced errors due to the use of full granite on all axes and structures

      • · Guarantees the best stability with table moving structure

        · Realizes ultra-precision measuring machine by removing Abbe error

        · Air bearings on all axes for high stability at high travel speeds

        · Minimized thermal induced errors due to the use of full granite on all axes and structures

      Specifications


      MODEL
      X
      Y
      Z
      Measuring Range (mm)
      800 ~ 1500
      1000 ~ 2500
      500 ~ 1000
      Resolution (μm)
      0.1/0.05

      Maximum Permissible Error

      per ISO 10360-2 (μm, L:mm)

      EO.MPE
      0.5+L/500 ~ 1.3+L/500
      RO,MPL
      0.5 ~1.3
      Maximum Velocity  (mm/s)
      300
      Air Requirements (kg/cm2, ℓ/kg)
      5, 55
      Maximum Workpiece Weight (kg)
      1000 ~ 2000
      Machine Weight (kg)

      4000 ~ 7000


      EO, RO with Sp80 only


      ■ Specification are subject to change without notice

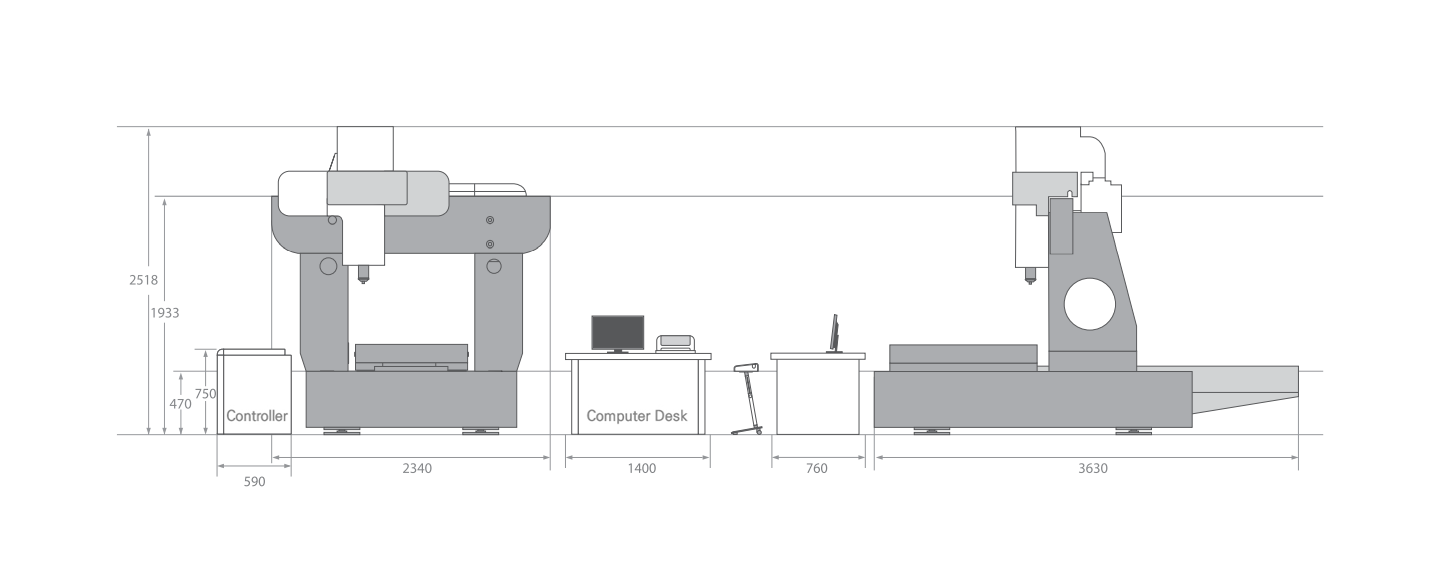

      System Dimension

      Specification are subject to change without notice


      Available software
      CMM Software
      NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

      Accessory

      • Joystick

      • 5-Axis Probe System

      • 3-Axis Probe System

      • Manual Probe System

      • Touch Probe Sensor

      • Scanning Probe Sensor

      • Laser Scanner

      • Auto Changer Rack

      • Stylus and Fixtures
