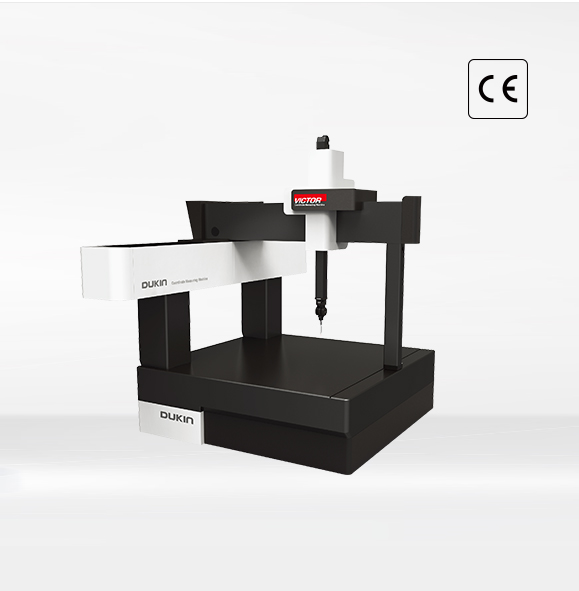

Bridge Coordinate Measuring Machine (Large Size)

VICTOR

Best for measuring large structures, automotive parts & molds

Adopted L type bridge structure which improves driving safety

Feature

· Adopted L type bridge structure which improves driving safety
· Minimized thermal induced errors due to the use of full granite on all axes and structures
· Air bearings on all axes for high stability at high travel speeds
· High precision CMM which is appropriate to high-speed scanning measurement
· Adopted stable light weight structure which is appropriate to high-speed and high precision measurement
· Best for measuring large structures, auto parts & molds
· High quality and cost-effective design
· CE certified in accordance with ISO 12100:2010 and 60204-1:2006+A1:2009

Specifications

MODEL			101008	101208	101508	121210	121510	151510	152010	153012
Measuring Range (mm)		X	1000	1000	1000	1200	1200	1500	1500	1500
		Y	1000	1200	1500	1200	1500	1500	2000	3000
		Z	800	800	800	1000	1000	1000	1000	1200
Overall Dimensions (mm)		X1	2280	2280	2280	2480	2480	2780	2780	2780
		Y1	2620	2820	3120	2820	3120	3120	3620	4620
		Z1	3200	3200	3200	3600	3600	3600	3600	4000
		Z2	2150	2150	2150	2350	2350	2350	2350	2550
		Z3	700	700	700	700	700	700	700	700
Resolution (μm)			0.1
Maximum Permissible Error per ISO 10360-2 (μm, L:mm)	Standard	E_O,MPE	2.4+L/300			2.9+L/300		3.4+L/300		3.9+L/300
	Standard	R_O,MPL	2.4			2.9		3.4		3.9
	High Accuracy	E_O,MPE	1.9+L/300			2.4+L/300		2.9+L/300		3.4+L/300
	High Accuracy	R_O,MPL	1.9			2.4		2.9		3.4
Maximum Velocity (mm/s)			350
Air Requirements (kg/cm², ℓ/kg)			5, 35			5, 55
Maximum Workpiece Weight (kg)			1500		2000	2500
Machine Weight (kg)			4100	4400	4900	4700	5300	5900	6900	9000

High Accuracy with SP25M

■ Specification are subject to change without notice

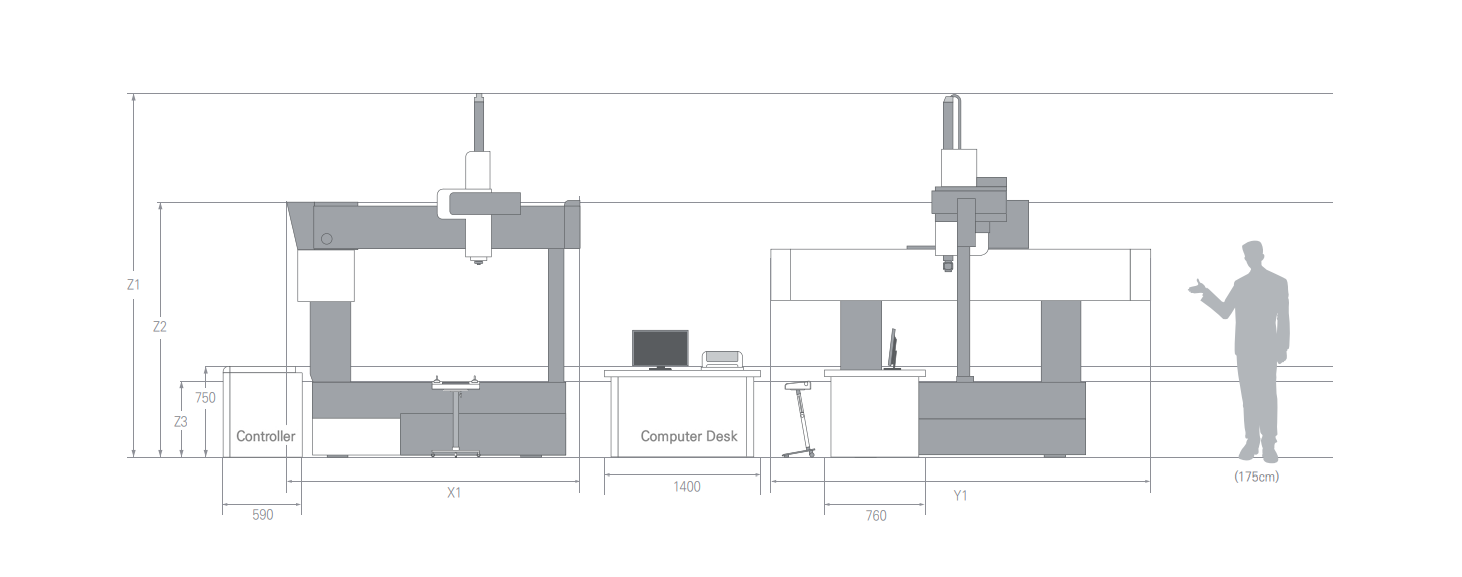

System Dimension

Specification are subject to change without notice

Available software

CMM Software

NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

Accessory

Joystick

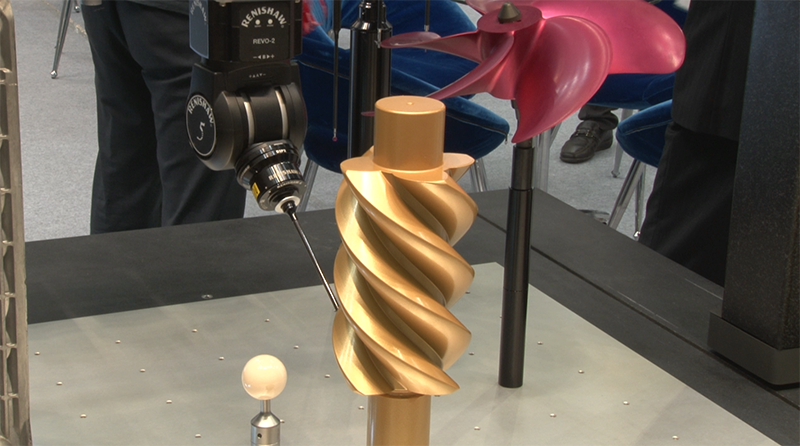

5-Axis Probe System
3-Axis Probe System
Manual Probe System
Touch Probe Sensor
Scanning Probe Sensor

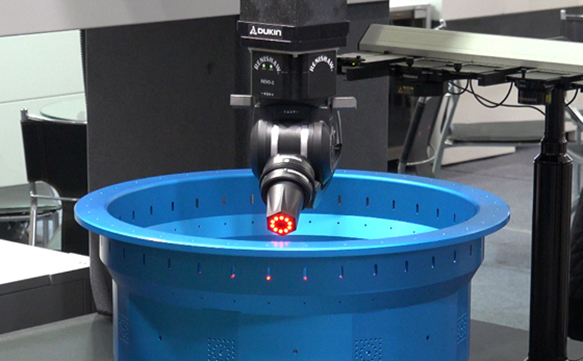

Laser Scanner
Auto Changer Rack
Stylus and Fixtures
