      Bridge Coordinate Measuring Machine (Small Size)
      CHAMP

      Recommended for small precision mold and electronic parts inspection process

      Bridge type CMM which improves working convenience

      Contact Sales
      Feature

      • · Adopted bridge structure which improves working convenience

        · Adopted stable lightweight structure which is appropriate to high-speed precision measurement

        · Air bearings on all axes for high stability at high travel speeds


      • · Best for measuring small parts such as precision molds and electronic parts.

        · High quality and cost-effective design

        · CE certified in accordance with ISO 12100:2010 and 60204-1:2006+A1:2009


      Specifications


      MODEL
      564
      Measuring Range (mm)X
      500
      Y
      600
      Z
      400
      Overall Dimensions (mm)
      		X1
      1320
      Y1
      1400
      Z1
      2100
      Z2
      1577
      Z3
      700
      Resolution (μm)
      0.1
      Maximum Permissible Error per ISO 10360-2 (μm, L:mm)
      EO,MPE
      1.9+L/300
      RO,MPL
      1.9
      Maximum Velocity (mm/s)

      400
      Air Requirements (kg/cm2, ℓ/kg)
      4, 25
      Maximum Workpiece Weight (kg)
      300
      Machine Weight (kg)
      650


      E0, R0 with TP200 or TP7M


      ■ Specification are subject to change without notice

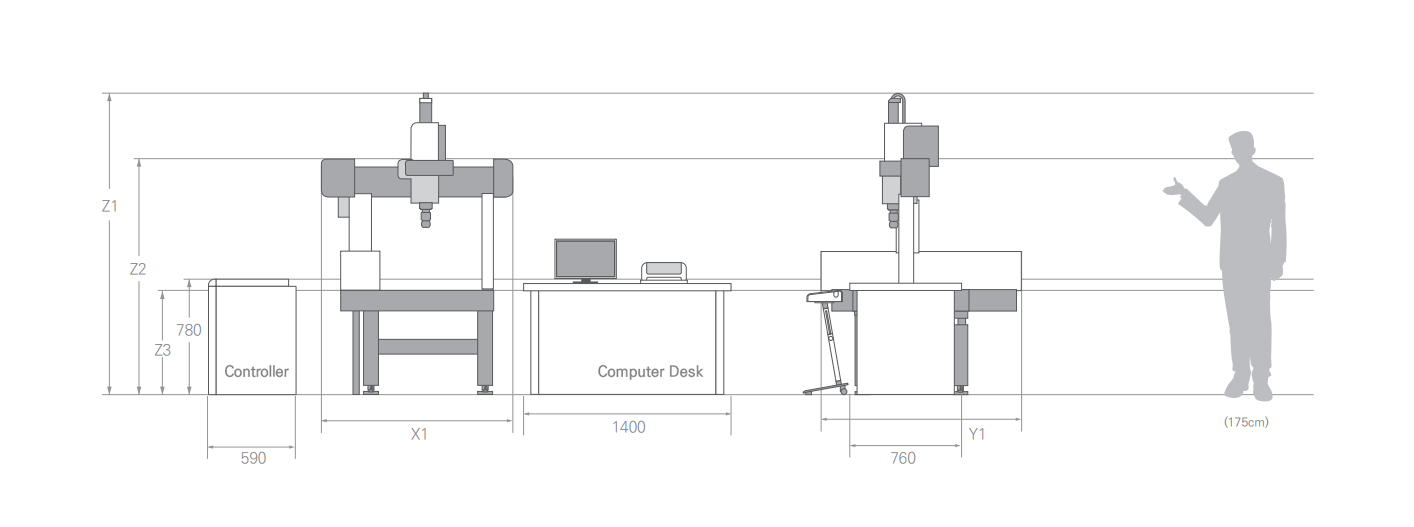

      System Dimension

      Specification are subject to change without notice

      Available software
      CMM Software
      NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

      Accessory

      • Joystick

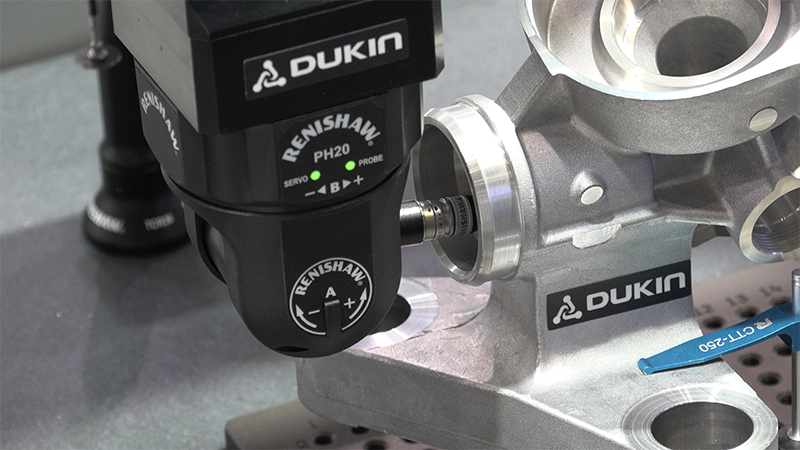

      • 5-Axis Probe System

      • 3-Axis Probe System

      • Manual Probe System

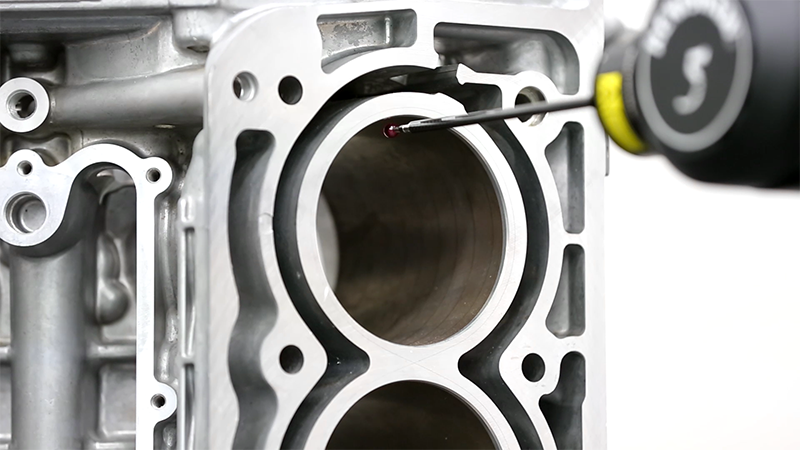

      • Touch Probe Sensor

      • Scanning Probe Sensor

      • Laser Scanner

      • Auto Changer Rack

      • Stylus and Fixtures
