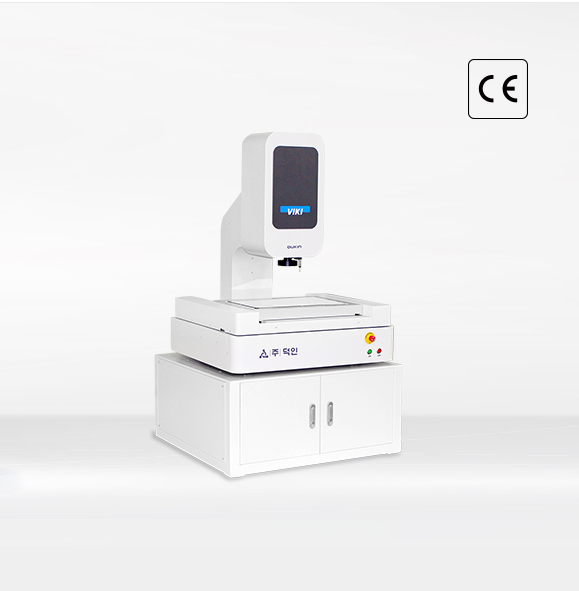

      Small Size Non-Contact 3D Coordinate Measuring Machine
      VIKI

      Multi-Sensor CMM offering wide range of sensors

      Recommended for small precision parts inspection process

      Contact Sales
      Feature

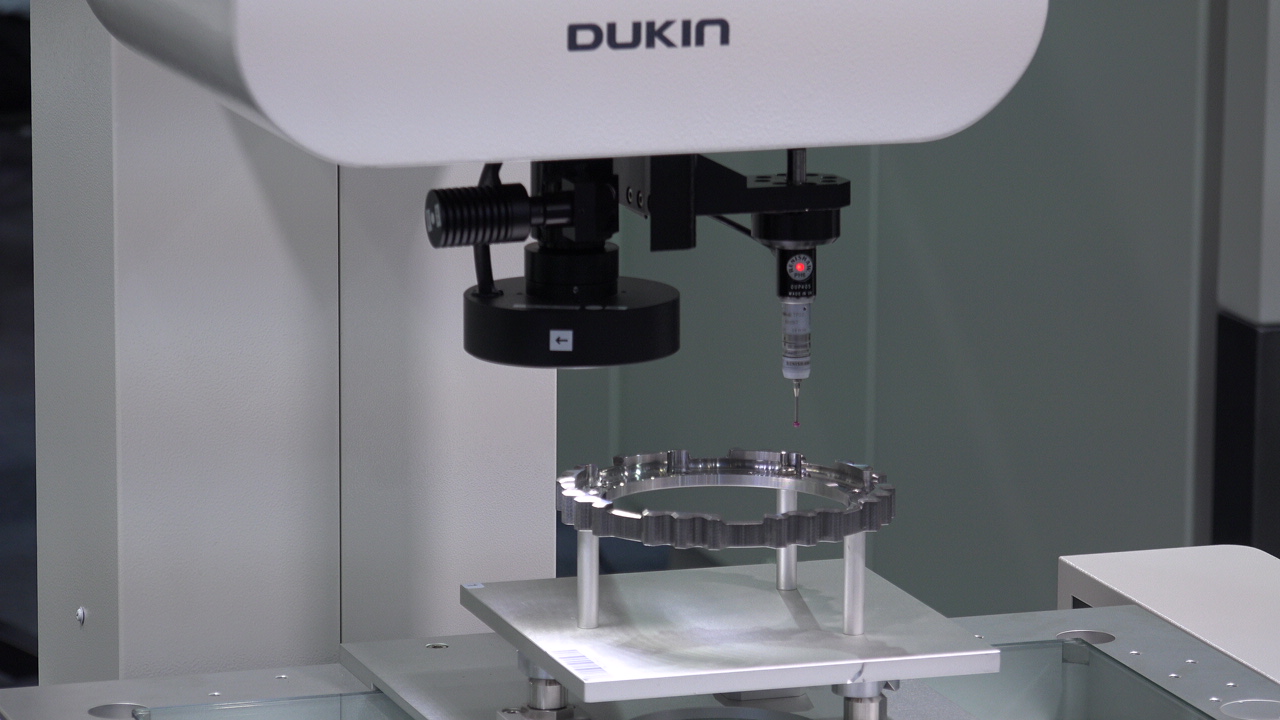

      • · Supports multi-sensor seamlessly including Automatic Zoom CCD Camera, Laser sensor and touch probe

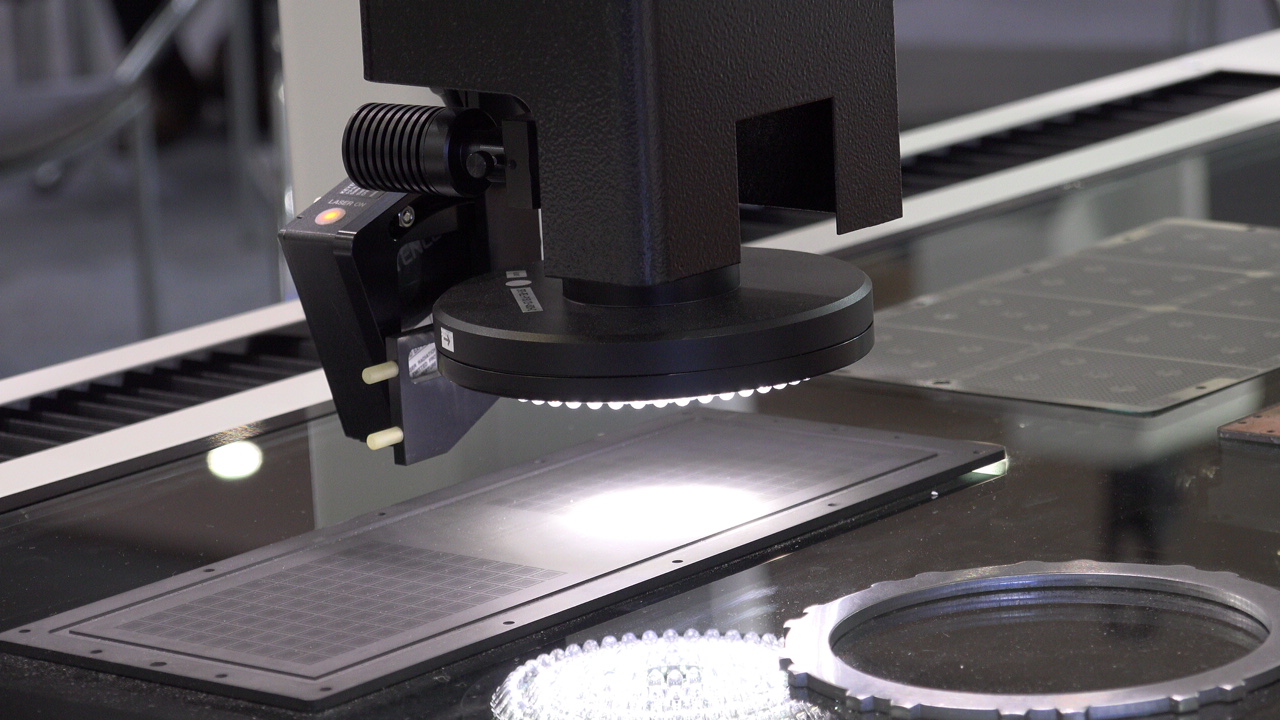

        · Optimal measurement quality with 16 channel programmable LED ring light illuminator

        · High definitive programmable digital zoom lenses for precision measurement

        · Adopted granite on main axes which guarantees high thermal stability and maintains measuring precision

      • · Best for measuring small parts such as precision molds and electronic parts.

        · High quality and cost-effective design

      Specifications


      MODEL
      331
      332
      Measuring Range (mm)
      X
      300
      300
      Y
      300
      300
      Z
      150
      250
      Overall Dimensions (mm)
      X
      950
      950
      Y
      950
      950
      Z
      1900
      1900
      Resolution (μm)
      0.1

      Maximum Permissible Error


      per ISO 10360-2 (μm, L:mm)


      XY
      2.5+L/200
      Z
      3.0+L/200
      Maximum Velocity (mm/s)
      400
      Maximum Workpiece Weight (kg)
      10
      Machine Weight (kg)
      650
      650


       ■ Specification are subject to change without notice

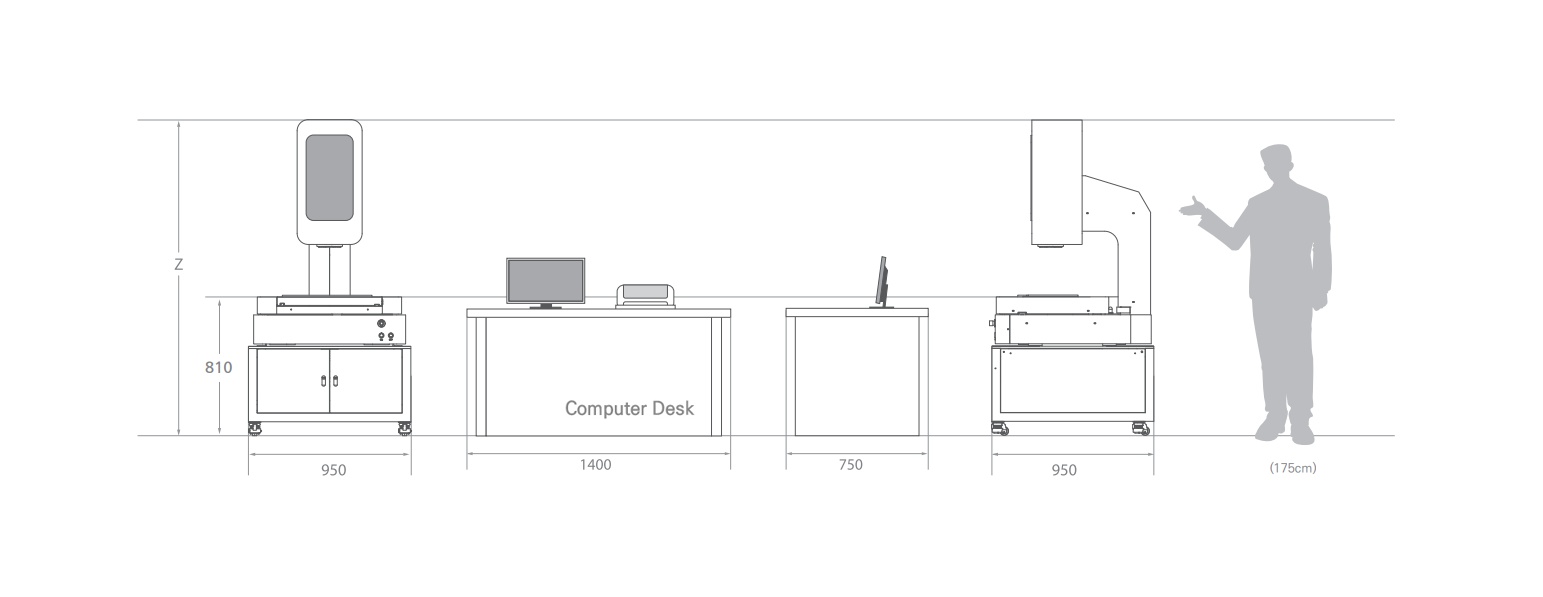

      System Dimension

      Specification are subject to change without notice.

      Available software
      Non-contact CMM Software
      NeuroView is multi-sensor measuring software which supports CCD camera, LD sensor and touch probes. NeuroView is developed to provide the excellent extendibility which integrates convenient user interface, powerful calculation/analysis, and high-quality graphic report for automatic measurement / inspection process.
      Accessory

      • Joystick

      • Image Sensor

      • Motorized Zoom Lens

      • Power Ring Light

      • Coaxial & Back Light

      • Laser Displacement Sensor

      • Chromatic Confocal White Light Sensor

      • Fixed & Manual Indexing Probe Head

      • Tool Changer

      • Master Gauge

      • Flattening Fixture

      • Navigation Monitor

      • TTL Laser AF

      • CAD Interface

      • Metrology Fixtures

      • Vacuum Chuck

      • Isolator

      • UPS/AVR
